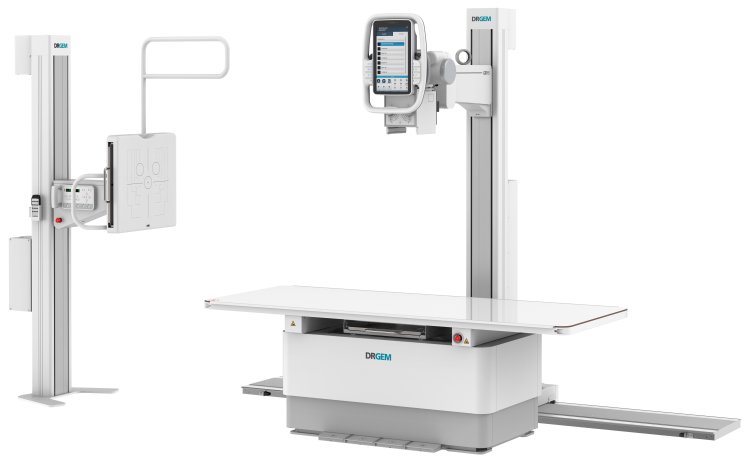

Name:DRGEM 400mA

Brand:DRGEM

Origin:Korea

Model:400mA

Descriptions:

Power Rating – 32KW
Generator – GXR-32S
Rotor – Dual Speed Starter(DSS)
Input Power – 400/480VAC, Three phase
Line Frequency – 50/60Hz
X-ray tube – DXT-12M, (0.6/1.2mm, 300kHU)
Tube Voltage – 40 to 150kV, 1kV Step
Tube Current – 10 to 640mA
Output – 640mA@81kV, 500mA@104kV, 400mA@130kV, 320mA@150kV
Time Range – 1ms to 10s
mAs Range – 0.1 to 800mAs
Reproducibility – Coecient of Variation : kV < 0.005, Time < 0.005,mAs < 0.01
Accuracy – kV < ±(1%+1kV), mA < ±(3%+1mA), Time <±(1%+0.5ms), mAs < ±(3%+0.1mAs)
Linearity – Coecient of Linearity < 0.01 : CL = (X1-X2)/(X1+X2), where X is mR/mAs
